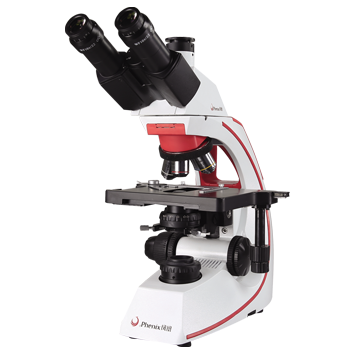

BMC512-IPL
-

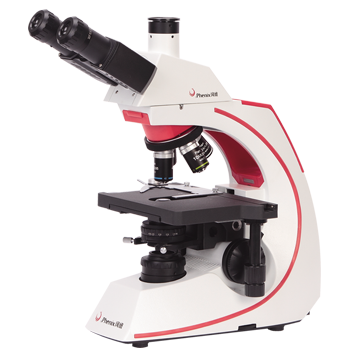

BMC513-IPL
-

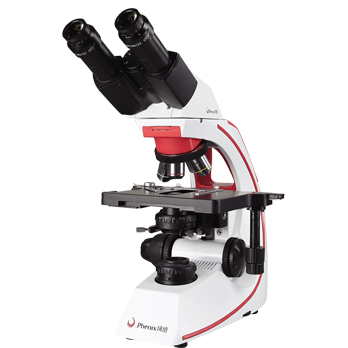

BMC532-ICCF
-

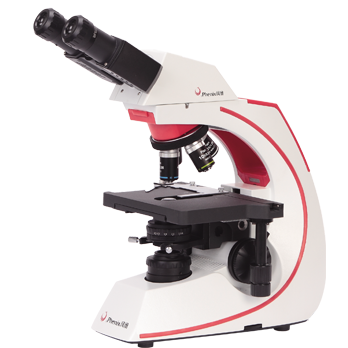

BMC533-ICCF
BMC500 series biological microscope
- Description
- Features
- Download
-
Phenix BMC500 series High-Level Biological Microscope Experiments, the use of New and Unique Phenix Completely Customize "ICCF® Infinity Corrected Colour Free Optical System" Design, to Achieve the Performance, Quality, Appearance and Enhance the Comprehensive Breakthrough, Compared to the Same Products with Internationally Renowned Brand, the Comprehensive Performance is Completely Beyond, is Highly Cost-Effective Product.
The product can be used in higher education, clinical diagnostics, scientific research, laboratories and other high-level applications.
Product features:
● Eyepiece: High Eyepoint, Large field of view, No distortion,Diopter adjustable
The eyepiece adopts plan field distortion-free design, which can be observed with high eyepoint, large field of view (field of view up to Φ22mm), and diopter adjustable. The standard configuration is Φ20mm wide-field eyepiece. When using Φ22mm eyepiece, It can also completely eliminate the phenomenon of virtual field and yellow-green aperture generated by traditional small-field eyepiece observation, greatly enhance the comfort of observation.
● Objective: ICCF® Infinity Plan High Contrast Achromatic objective
The objective lens is designed with "ICCF® Infinity Plan High Contrast Achromatic" design. On the basis of the original infinity plan achromatic, the plan field degree, the contrast and the achromatic are promoted to the effect of the "semi-apochromatic plan field". At the same time, imported glass materials and advanced multi-layer broadband coating technology have greatly improved the plan field, sharpness, brightness and contrast of the image. Thereby the observed image is naturally realistic. Even with very thin sections, can also guarantee excellent imaging results.
● Working Stage: Detachable Super Large Stage
Double-layer mechanical moving stage, triangular steel column guides up and down, can hold two slice
Detachable, Anti-corrosive, Anti-mild, and Wear-resistant Stage.
Large size: 188mm × 145mm, long stroke: 76mm × 54mm
● Focusing method: coarse and fine coaxial
Coarse adjustment stroke: 22mm, fine adjustment accuracy: 0.001mm, adjustable elasticity, upper limit adjustable, random positioning.
● Illumination system: upper light source, bottom light source
Upper light source: 1W LED cold light source with lens (non-standard, optional)
Bottom light source: LED cold light source, 3W, precise stepless dimming, no flicker (standard); halogen lamp: 6V/30W, precise stepless dimming, no flicker (non-standard, optional)
● Color filters
Halogen lighting: use blue filter. Phase contrast observation: Use green color filter or IF550 special phase contrast interference color filter. Others: According to observation requirements, choose different color filters for real-time background replacement.
● C type camera interface
When using a trinocular observation head to connect to the camera, you can use the following C-mount lens to obtain different fields of view.
0.5X (standard configuration), 0.65X、1X (non-standard configuration)
-
BMC500 Series Biological Microscope Main Parameters
Model
BMC532-ICCF
BMC533-ICCF
BMC512-IPL
BMC513-IPL
Total magnification
40X-1600X
Viewing tube
Infinity compensation binocular
Infinity compensation trinocular
Infinity compensation Binocular
Infinity compensation trinocular
30°inclined, 360° rotatable, interpupillary distance : 48-75mm
(No need to push and pull rods for light splitting, ensure that visual observation
and digital images can be fully illuminated)
Eyepiece
High eyepoint, wide field WF10X/20mm, diopter adjustable;
high eyepoint, wide field WF16X/16mm, diopter adjustable
Objective
Infinity Plan High Contrast Full Achromatic objective
Infinity Plan Achromatic objective
HC PLAN 4X
IPL PLAN 4X
HC PLAN 10X
IPL PLAN 10X
HC PLAN 40X
IPL PLAN 40X
HC PLAN 100X
IPL PLAN 100X
Nosepiece
Inner clined quadruble nosepiece, ball bearing inner locating
Stage
Double-layer mechanical sliding stage, triangle steel column guide rails up and down,
area: 188mm×145mm, moving range: 76mm×54mm, with two double slide clips
Focusing
system
Coaxial coarse and fine focusing knob, coarse focusing range 22mm,
fine focusing graduation: 0.001mm, elasticity adjustable,
upper limit adjustable, random positioning
Condenser
Full Kohler Abbe condenser N.A=1.25, lift up and down,
center adjustable, iris diaphragm
Illumination
Full Kohler illumination, view aperture is adjustable
Upper light
1W LED cold light source with lens (Non-standard, optional)
Bottom light
LED cold light source, 3W, precision stepless dimming, no flicker (Standard)
Halogen lamp, 6V/30W, precision stepless dimming (Non-standard, optional)
Power supply
External switch power supply, input AC90-240V, output DC 6.5V/5A
Optional accessories
Dark field attachment
Dark field plug-in boards(10X/40X)
Phase contrast attachment
Infinite Plan High-contrast
Achromatic Phase Contrast Objectives
HC PLAN-PH 4X
HC PLAN-PH 4X
HC PLAN-PH 4X
HC PLAN-PH 4X
Phase Contrast Centring
CT 10X
Phase Contrast Board
10X Phase Contrast Board
40X Phase Contrast Board
Fluorescence attachment
LED Epi-fluorescence: B、G、UV band optional,
two arbitrary replacement dichroic mirror
Professional Fluorescence: Fluorescence excitation group: B, G, UV, V four groups,
arbitrarily choose and match; power box, high-pressure spherical mercury lamp light box
Polarized accessories
Polarizer (lower polarizer)
Analyzer (upper polarizing board)
Camera interface
0.5X C type thread interface
0.65X C type thread interface
1X C type thread interface
-
